Price range: $25.87 through $93.46
Product Features:

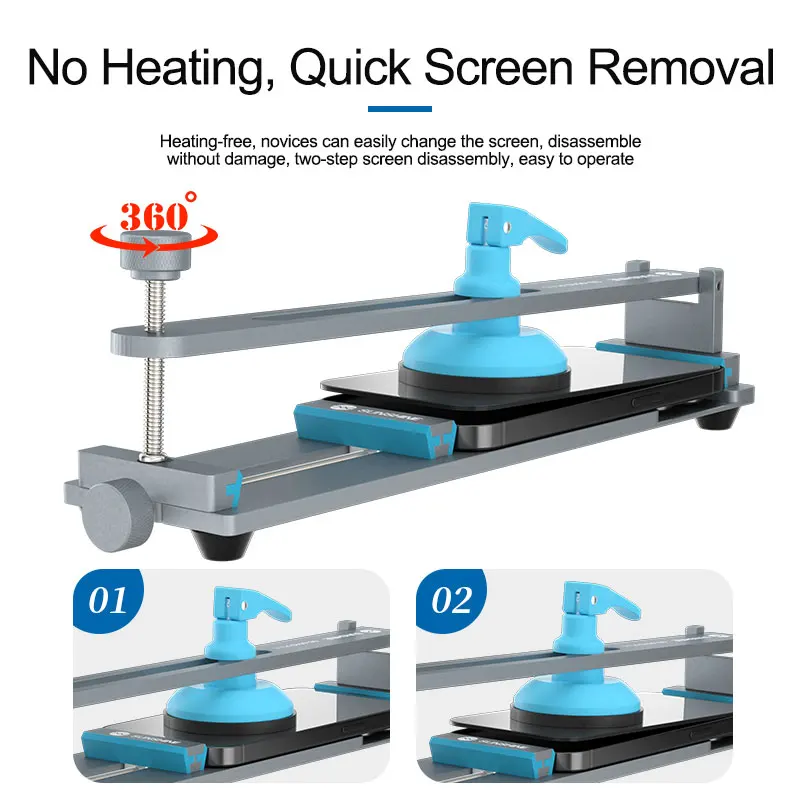

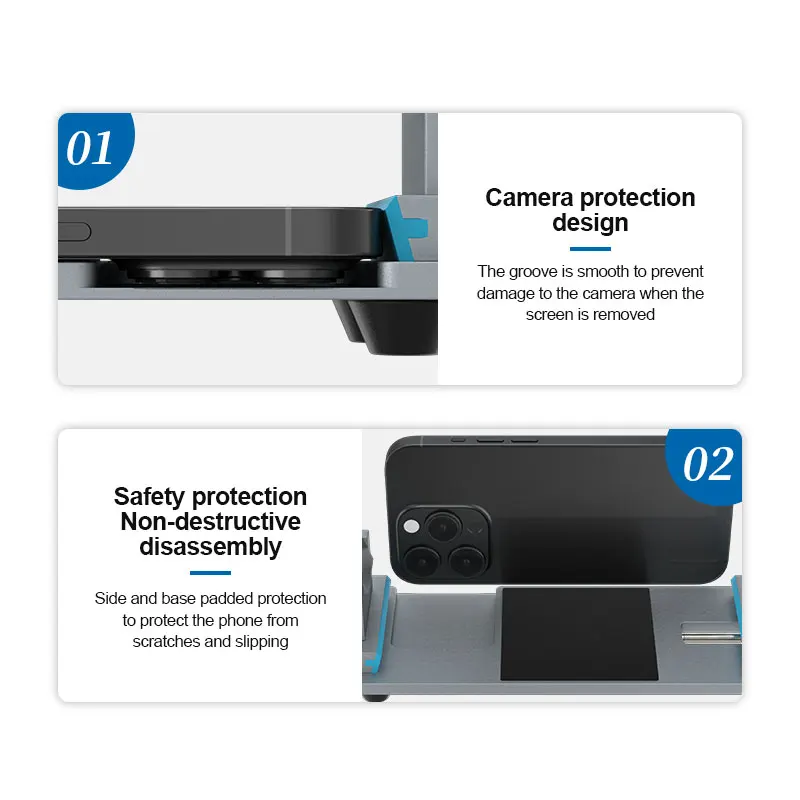

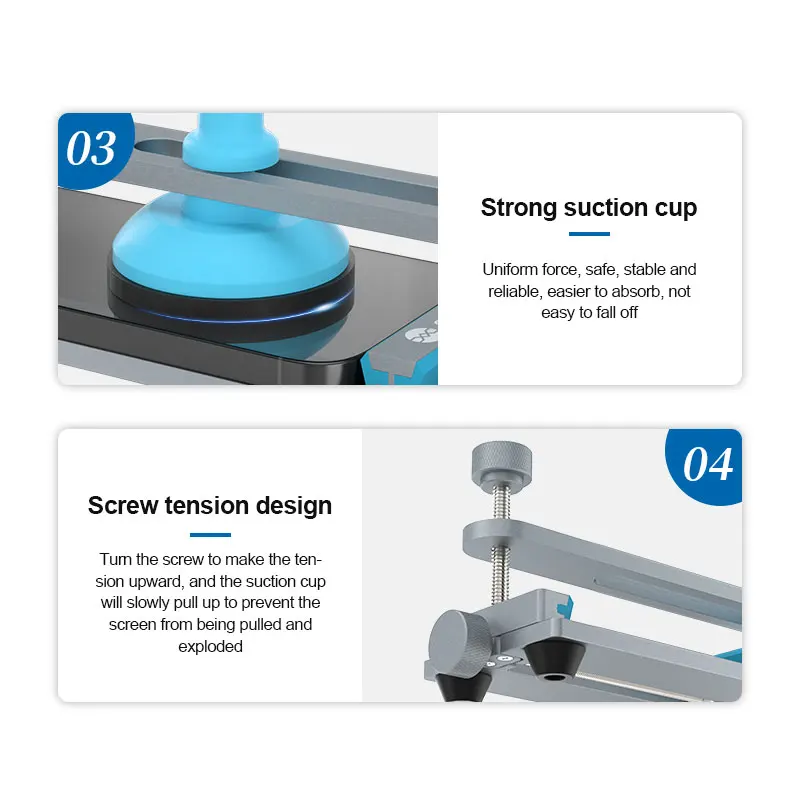

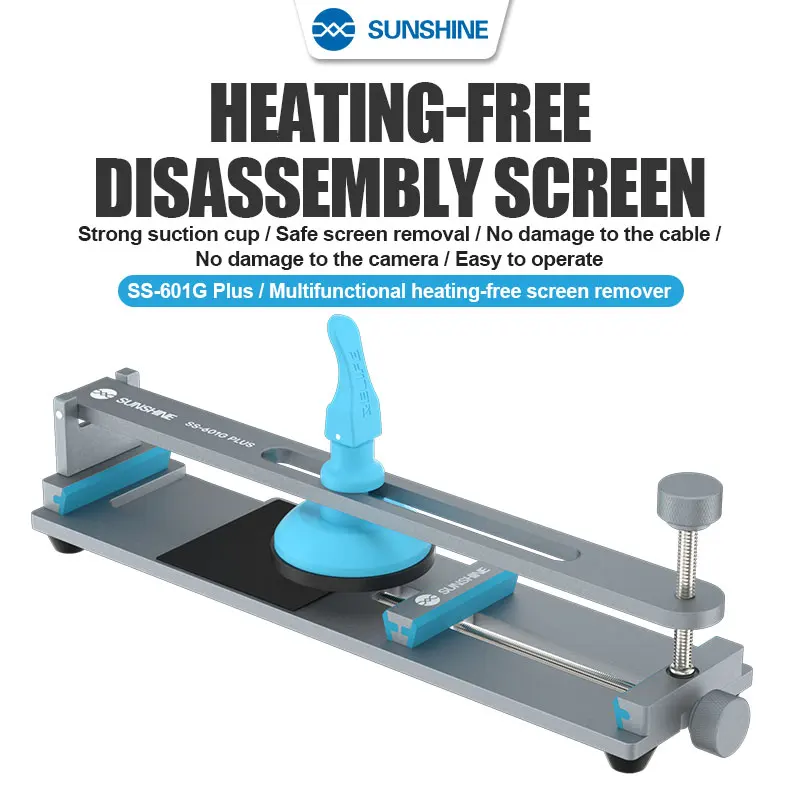

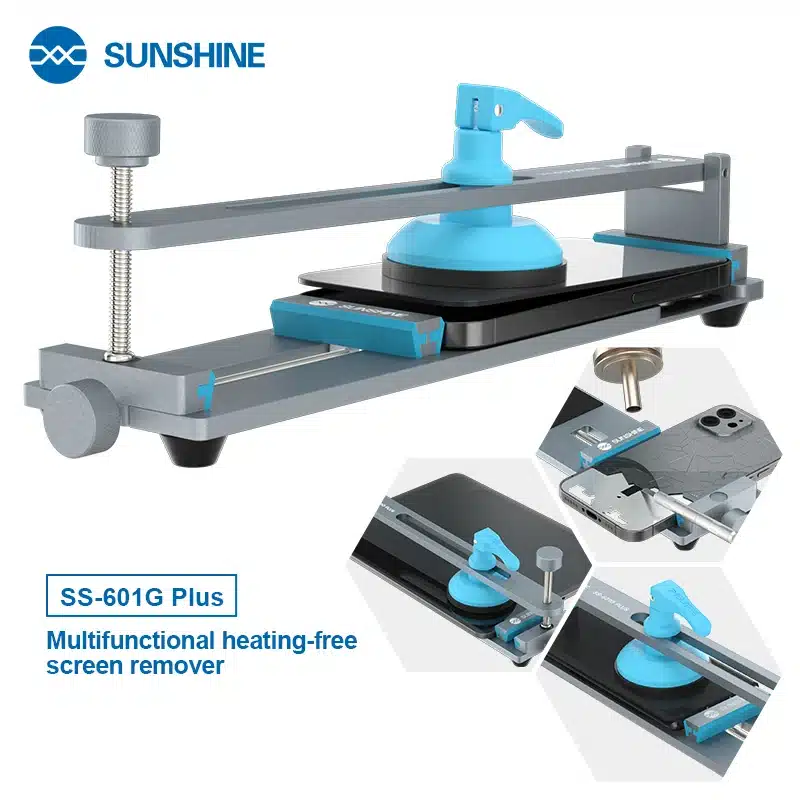

Strong suction cup / safe screen removal / no damage to the cable / no damage to the camera / easy to operate

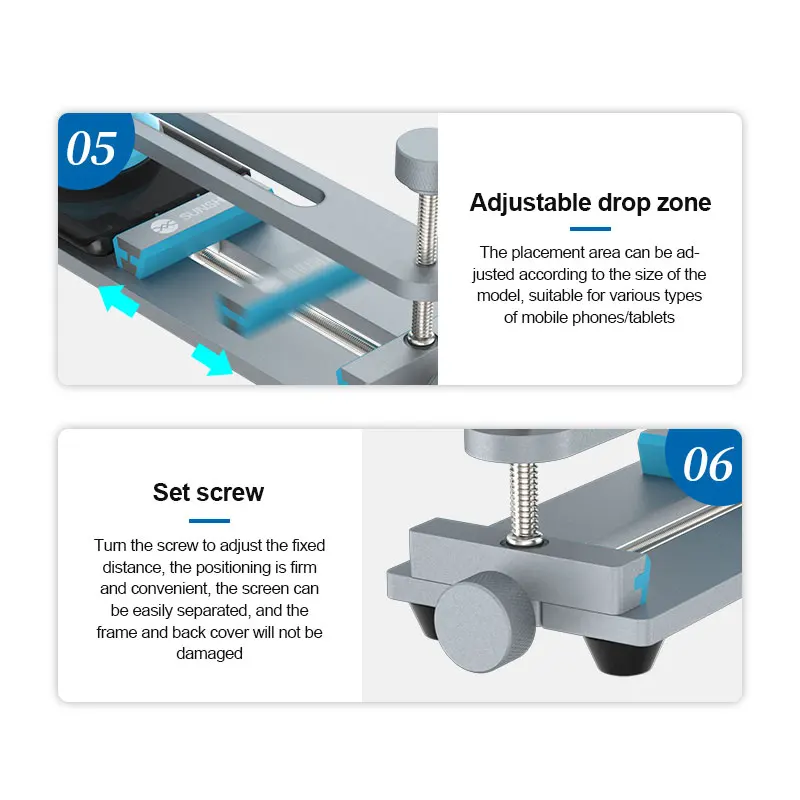

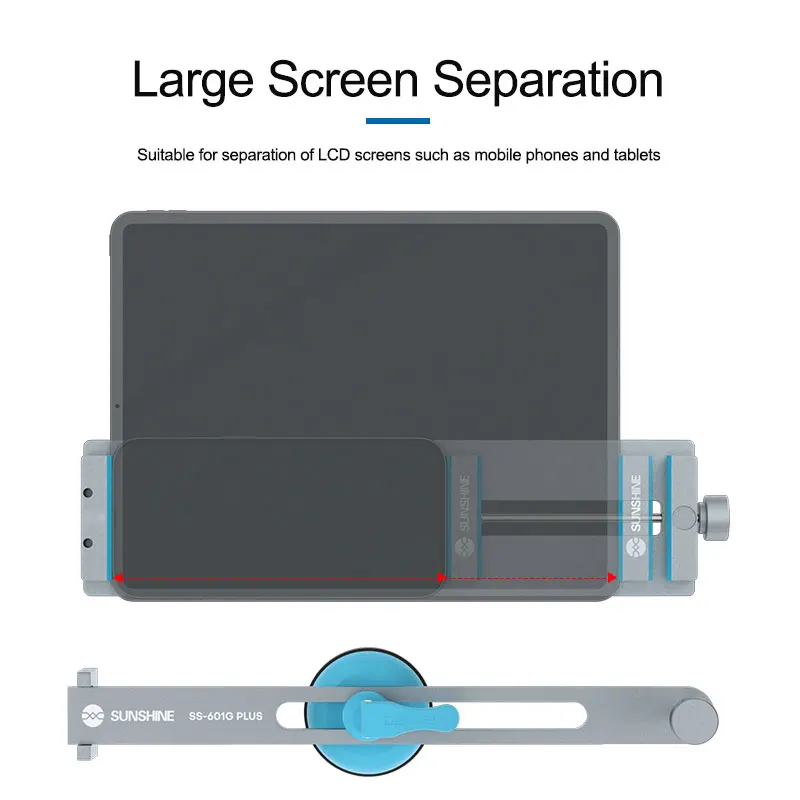

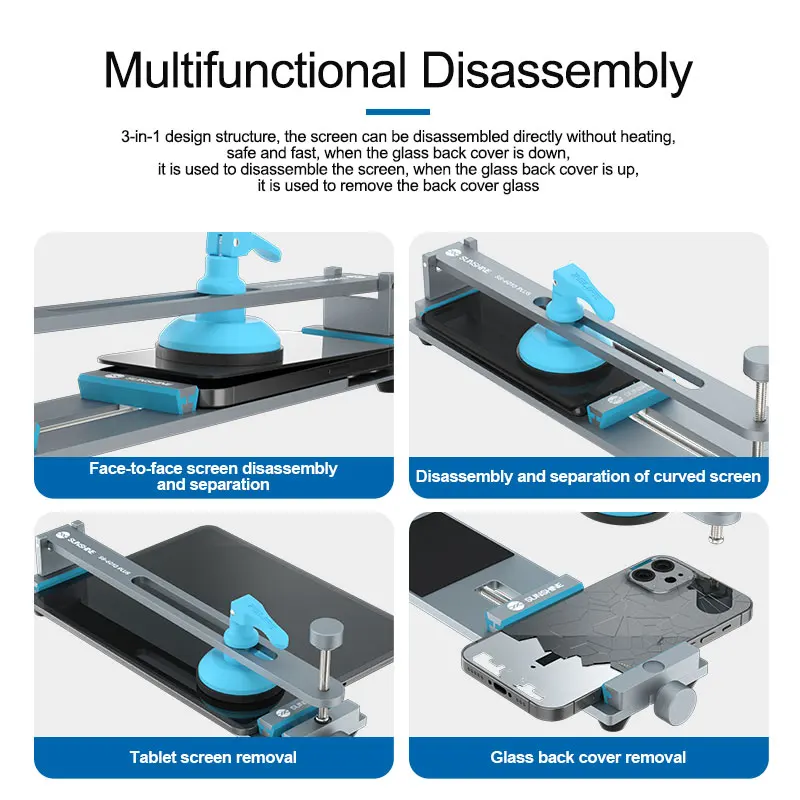

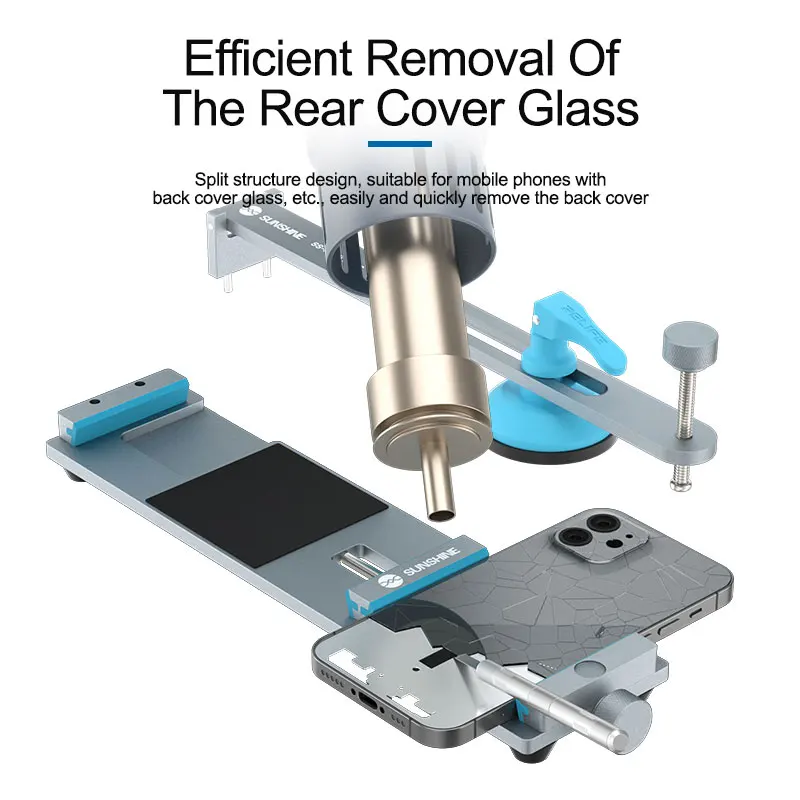

Applicable to the separation of LCD screens such as mobile phones/tablets and the removal of rear cover glass

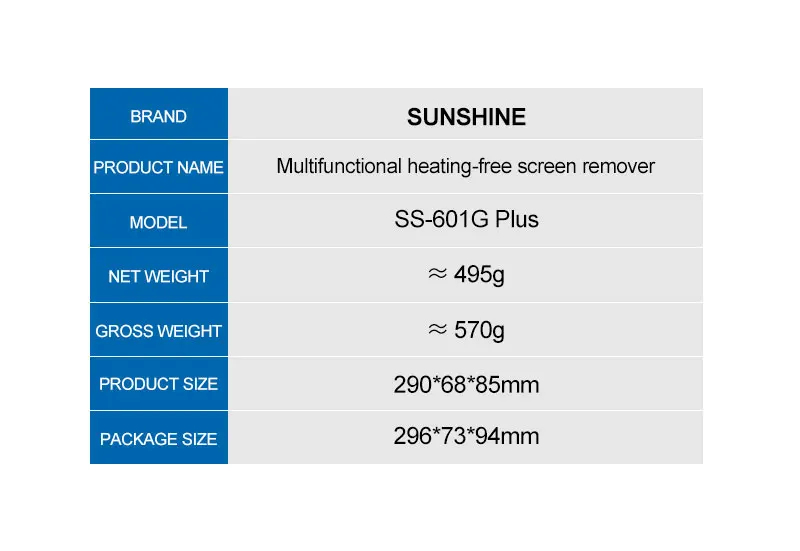

| Brand | SUNSHINE |
|---|---|
| Product Type | Test Fixture |
|
Version |
Battery Cell |
Chipset |
Assembled |
PERFORMANCE |
|---|---|---|---|---|
|
Gerneral Aftermarket |
Other OEM Brands |
Singlechip Solution Domestic Chinese Brand IC |
Third Parts |
Neutral |
|
Premium Aftermarket |
Ganfeng/Juxin/ETX/VEKEN |
InnoSwitch/Powerflash Solution Korea Imported IC |
Third Parts |
Like Original |
|
Platinum Aftermarket |
Ganfeng/Juxin/ETX/VEKEN |
TI solution Korea Imported IC |
Third Parts |
Like Original |
|
Original |
LG/ATL/SONY |
TI Gas Gauge IC / Taiwan IC |
SUNWODA/DESAY |
Original |
Battery is mainly composed of the protection board and battery cell,there is a lots of different brands and factories providing these material for the battery.The original solution for iPhone battery is:The protection board adpoted Texas Instruments(TI) and Taiwan Company solution,the battery cell is provided by three companies, ATL battery cell, LG battery cell and 2%-5% Sony battery cell.
We grade the iPhone Battery into 4 different types of quality in the market(The original version could only buy from Apple authorization channel). The above table is the full details of each condition.
Gerneral AfterMarket
Chasing a balance between price and quality for customers‘ need,this version is widely accept for clients come from developing country. It has sustainable supplying chain in China, and the battery cell and protection board are OEM copy quality from small third parts factories. No doubt, the other components of battery are all OEM copy. For most cheap prices battery,it may be durable at the beginning, but the capacity drops quickly after 3-4 months since. The quality of the battery cell is unstable and it is easily damaged by fast charging and high current discharge.
Premium AfterMarket
It is better than Gerneral AfterMarket Basic cause it comes with mainstread battery cell and protection board. Typically, the battery cell provide from several different factories, the most popular 4 on China market are ETX,VEKEN, GANFENG, and JUXIN.The Protection IC adopt InnoSwitch/Powerflash solution with Korea imported IC,which is a stable and reliable solution.
Platinum AfterMarket
In order to build a trustworthy brand, some clients have higher requirements for product quality. So this version created for a higher customer demand.The core components battery cells come from Top brand cell Supplier and use TI solution with Korea Impoted IC which its performance is almost the same as the original.
Original
The materials are 100% original from Apple-authorized factories. Battery cell comes from like LG/ATL/SONY, adpoting (TI) and Taiwan IC and assembled by authorized factories like SUNWODA/DESAY. Obviously, the original one with a higher cost and it could only buy from Apple authorization channel.
|
Version |
Battery Cell |
Chipset |
Capacity |
Battery Adhesive |
Repair Tool |
Certificate |
|---|---|---|---|---|---|---|
|
Premium Aftermarket |
Ganfeng/Juxin |
InnoSwitch Solution Korea Imported IC |
1,Standard capacity: Almost Same as original 2,High capacity: 10-30% Higher Than original |
Included |
Optional |
UN 38.3, CE, ROHS, FCC Certified,UL 2054 test report |
The current version we provide for customers is the second grades(Premium aftermarket),which have the highest price performance.But we can also customised different quality according to YOUR need. We also support OEM for small quantity order.Welcome to contact us if you have any specifice request
|
Version |
Desciption |
LCD |
glass |
Flex Cable |
Frame |
Appearance Intactness |
|---|---|---|---|---|---|---|
|
Aftermarket Basic |
China LCD |
JK |
Aftermarket |
Aftermarket |
Aftermarket |
New |
|
Aftermarket Basic |
Flex Cable Replaced |
Original |
Aftermarket |
Original |
Aftermarket |
New |
|
Aftermarket Basic |
Glass Replaced |
Original |
Aftermarket |
Original |
Aftermarket |
New |
|
Original Pulls |
Pull Form Used Devices |
Original |
Original |
Original |
Original |
New Alike |
|
Original |
Original Pulls |
Original Equipment Manufacturer |
Original |
Original |
Original |
New |
In our store, we grade our iPhone screen into 5 different types of quality on the basis of different material assembled. The following is the full details of each condition.
After Market Basic
It is with widely accept major complaint replacements for original parts, which keeps a right balance between price and quality. It has sustainable supplying chain in China, and all the components of the screen are copy quality. Typically, the LCD/Oled screens are from several different factories, the most popular on China market are JK,AUO, HG,LongTeng, and ShenChao,GX,DD. By comparing the brightness and sharpness of the LCD, we found JK is the best quality for lcd among them and GX for oled.No doubt, the other components on the screen are all copy.
After Market Standard
It is better than After Market Basic cause it comes with original laminated flexes and the LCD panel. Other components like touch panel, frame(hot pressed), backlight, polarize lens, and OCA is all copy from different factories.
After Market Selected
The core components (like LCD and flexes) is 100% original pulled from used iPhone while the frame and touch panel is copy. The touch panel and frame come together with cold pressed glue and assembled together with the LCD by the capable third-party factory which keeps its excellent quality.
Original Pulls
No doubt, it is tear down from used iPhone with all the parts 100% original and working perfectly just like an original new screen, it has whatever the original new screen has. The only complaint about this quality is that some of the displays are with 1 or 2 scratches but still be welcome by our critical customers who are requiring good quality.
Original New
It is 100% original from Apple-authorized factories like Toshiba, Sharp, and LG. We get this kind of screen from the first level dealer. The touch panel of the screen is oleophobic coated which prevents from fingerprints when using your iPhone. And starting with iPhone 7g, the backlight from different authorized factories comes with a different code. Backlight from Sharp has the code begins with DKH/CON, from Toshiba begins with C11/F7C/FZQ, from LG begins with DTP/C3F.
|
Version |
Model |
LCD |
Display Panel Type |
Other Components |
True Tone Programming Support |
|---|---|---|---|---|---|
|
Aftermarket Basic |
iPhone 5-8 series |
High copy China LCD |
LCD |
High Quality Aftermarket |
No |
|
Original Pull |
iPhone 5-8 series |
Original |
LCD |
Original |
YES |
|
Aftermarket Basic |
iPhone X-15 Series |
High copy China LCD |
Incell LCD |
High Quality Aftermarket |
YES |
|
Aftermarket Basic |
iPhone X-15 Series |
JK |
Incell LCD |
High Quality Aftermarket |
YES |
|
Aftermarket Basic |
iPhone X-15 Series |
GX |
Oled |
High Quality Aftermarket |
YES |
|
Original Pull |
iPhone X-15 Series |
Original |
Oled |
Original |
YES |
For iPhone 5-8 Series,we provide two version for end-user,the economic one is high copy aftermarket basic,lcd and other components all OEM version,the premium quality vesion is original pull.
For iPhone model above X,because the different of display panel type,we choose the most popular brand(JK for Incell LCD and GX Oled)in the market,because JK and GX only produce part of iphone model, so we add some other brand and of course original pull version for higher request.
You can see there is 5 grade of screen and many other lcd brands in the market and We only upload part of them, if you need other version and lcd brand, welcome to contact us for the prices.
