Name: Front Camera Replacement for iPhone 8/SE2020/SE2022
SKU: MW-FCIP08
Availability: InStock

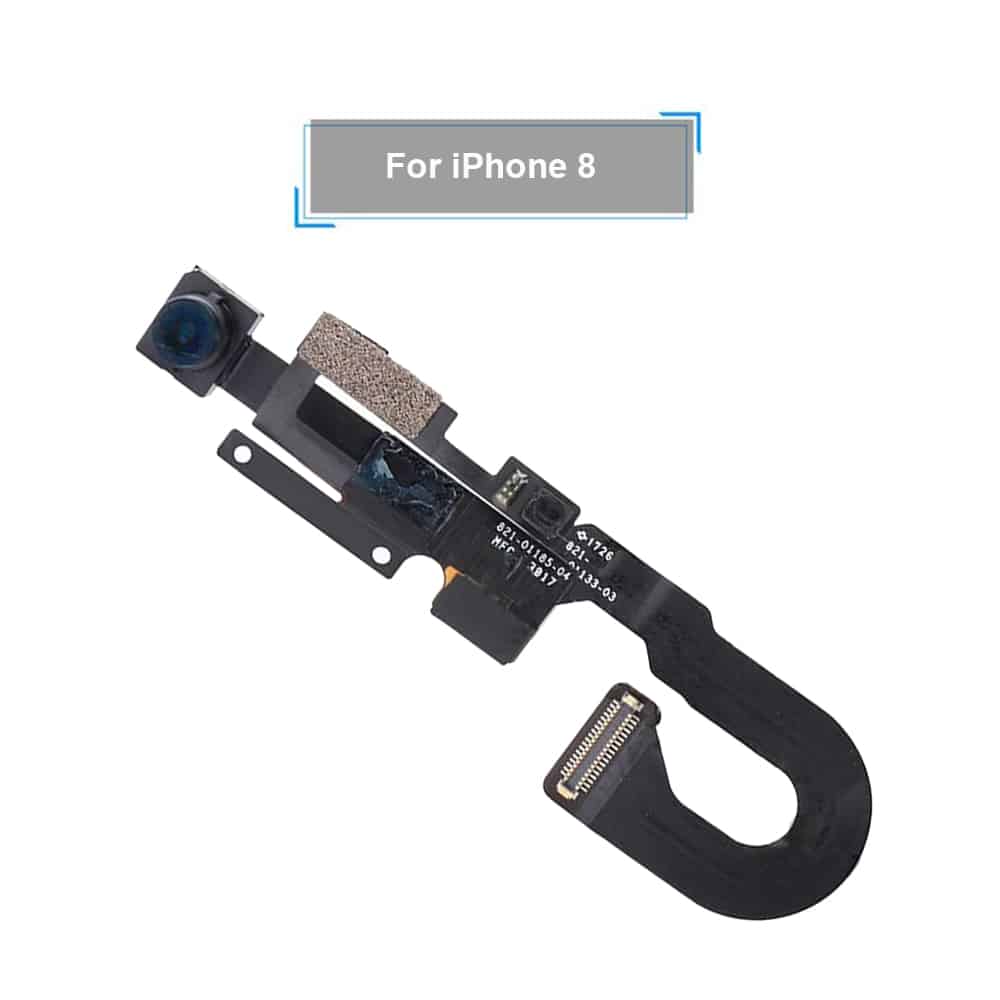

Front Camera Replacement for iPhone 8/SE2020/SE2022

High quality OEM Front Camera cable replacement with light sensor and proximity sensor for iPhone 8 4.7 inch。
Best choice to replace if your iPhone front camera is defective.We have been tested well one by one before shipping.
Compatible: iPhone 8,we may block the apple logo because of some sensitive law requirement
This part is intended for repair professionals only. If you want to DIY, please find help from professionals or watch videos on utube.
We are care deeply about customer satisfaction. You will get a full refund if you aren’t pleased with this product. Fast shipping and with 60 days free warranty.

999 in stock

About GUPFIX

GUPFIX is a young brand which mainly specialize in internal part and electronic components for phone repair and different kinds of DIY tools

Who Need It?

When your iPhone 8 face the below issue,you may need to get one to make your iPhone like original

1 No sound after earpiece reinstallation

2 Your friends can not hear your voice,when making a video call

3 Siri no response

4 when using the front camera,it shows black and no image

5 when making a call,the screen will not turn black automatically.

6 The screen will not adjust the brightness automatically.

Package included:

1 x Brand New OEM Front Camera cable
1 x Clean Wiper

How to replace the front camera

Kindly Noted:(Important!!)

1.Before disassembling your iPhone, discharge the battery below 25%. A charged lithium-ion battery can catch fire and/or explode if accidentally punctured.

2.Power off your iPhone before beginning disassembly

Step1,Remove the two 3.4 mm pentalobe screws on the bottom edge of the iPhone.

Step2,Attach a suction cup to the lower half of the display assembly, just above the home button.Insert the flat edge of a spudger into the bottom right corner of the device.

Step3,Pull the display assembly slightly away from the top edge of the phone to disengage the clips holding it to the rear case.

Step4,Remove four tri-point Y000 screws securing the lower connector bracket, of the following lengths:Three 1.2 mm screws;One 2.4 mm screw.

Step5,Remove the lower connector bracket.

Step6,Use a spudger or a fingernail to disconnect the two lower display connectors by prying them straight up from their sockets on the logic board.

Step7,Disconnect the front panel sensor assembly connector from its socket on the logic board.

Step8,Remove the display assembly.

Step9,Remove the three Phillips screws securing the earpiece bracket to the front panel:Two 2.6 mm screws;One 1.7 mm screw

Step10,Remove the earpiece speaker.

Step11,Use the pick to lift the camera cable up off of the two plastic posts on the front panel and separate it from the last of the adhesive.

Step12,Remove the front camera and sensor cable.You have now successfully removed your Front Camera!To reinstall the iPhone, use the previous steps in this manual and apply them backwards.

Weight

20 g

Dimensions

15 × 12 × 0.8 cm

Phone Model

For iPhone SE3(2022) , For iPhone SE(2020) , For iPhone 8

Product Type

Front camera

Click here to check the grades For other internal small parts

Battery Grades in the Market

Version	Battery Cell	Chipset	Assembled	PERFORMANCE
Gerneral Aftermarket	Other OEM Brands	Singlechip Solution Domestic Chinese Brand IC	Third Parts	Neutral
Premium Aftermarket	Ganfeng/Juxin/ETX/VEKEN	InnoSwitch/Powerflash Solution Korea Imported IC	Third Parts	Like Original
Platinum Aftermarket	Ganfeng/Juxin/ETX/VEKEN	TI solution Korea Imported IC	Third Parts	Like Original
Original	LG/ATL/SONY	TI Gas Gauge IC / Taiwan IC	SUNWODA/DESAY	Original

Battery is mainly composed of the protection board and battery cell,there is a lots of different brands and factories providing these material for the battery.The original solution for iPhone battery is:The protection board adpoted Texas Instruments(TI) and Taiwan Company solution,the battery cell is provided by three companies, ATL battery cell, LG battery cell and 2%-5% Sony battery cell.

We grade the iPhone Battery into 4 different types of quality in the market(The original version could only buy from Apple authorization channel). The above table is the full details of each condition.

Gerneral AfterMarket

Chasing a balance between price and quality for customers‘ need,this version is widely accept for clients come from developing country. It has sustainable supplying chain in China, and the battery cell and protection board are OEM copy quality from small third parts factories. No doubt, the other components of battery are all OEM copy. For most cheap prices battery,it may be durable at the beginning, but the capacity drops quickly after 3-4 months since. The quality of the battery cell is unstable and it is easily damaged by fast charging and high current discharge.

Premium AfterMarket

It is better than Gerneral AfterMarket Basic cause it comes with mainstread battery cell and protection board. Typically, the battery cell provide from several different factories, the most popular 4 on China market are ETX,VEKEN, GANFENG, and JUXIN.The Protection IC adopt InnoSwitch/Powerflash solution with Korea imported IC,which is a stable and reliable solution.

Platinum AfterMarket

In order to build a trustworthy brand, some clients have higher requirements for product quality. So this version created for a higher customer demand.The core components battery cells come from Top brand cell Supplier and use TI solution with Korea Impoted IC which its performance is almost the same as the original.

Original

The materials are 100% original from Apple-authorized factories. Battery cell comes from like LG/ATL/SONY, adpoting (TI) and Taiwan IC and assembled by authorized factories like SUNWODA/DESAY. Obviously, the original one with a higher cost and it could only buy from Apple authorization channel.

What grade we currently provide for battery?

Version

Battery Cell

Chipset

Capacity

Battery Adhesive

Repair Tool

Certificate

Premium Aftermarket

Ganfeng/Juxin

InnoSwitch Solution Korea Imported IC

1,Standard capacity: Almost Same as original

2,High capacity: 10-30% Higher Than original

Included

Optional

UN 38.3, CE, ROHS, FCC Certified,UL 2054 test report

The current version we provide for customers is the second grades(Premium aftermarket),which have the highest price performance.But we can also customised different quality according to YOUR need. We also support OEM for small quantity order.Welcome to contact us if you have any specifice request

LCD Screen Grades

Version	Desciption	LCD	glass	Flex Cable	Frame	Appearance Intactness
Aftermarket Basic	China LCD	JK	Aftermarket	Aftermarket	Aftermarket	New
Aftermarket Basic	Flex Cable Replaced	Original	Aftermarket	Original	Aftermarket	New
Aftermarket Basic	Glass Replaced	Original	Aftermarket	Original	Aftermarket	New
Original Pulls	Pull Form Used Devices	Original	Original	Original	Original	New Alike
Original	Original Pulls	Original Equipment Manufacturer	Original	Original	Original	New

In our store, we grade our iPhone screen into 5 different types of quality on the basis of different material assembled. The following is the full details of each condition.

After Market Basic

It is with widely accept major complaint replacements for original parts, which keeps a right balance between price and quality. It has sustainable supplying chain in China, and all the components of the screen are copy quality. Typically, the LCD/Oled screens are from several different factories, the most popular on China market are JK,AUO, HG,LongTeng, and ShenChao,GX,DD. By comparing the brightness and sharpness of the LCD, we found JK is the best quality for lcd among them and GX for oled.No doubt, the other components on the screen are all copy.

After Market Standard

It is better than After Market Basic cause it comes with original laminated flexes and the LCD panel. Other components like touch panel, frame(hot pressed), backlight, polarize lens, and OCA is all copy from different factories.

After Market Selected

The core components (like LCD and flexes) is 100% original pulled from used iPhone while the frame and touch panel is copy. The touch panel and frame come together with cold pressed glue and assembled together with the LCD by the capable third-party factory which keeps its excellent quality.

Original Pulls

No doubt, it is tear down from used iPhone with all the parts 100% original and working perfectly just like an original new screen, it has whatever the original new screen has. The only complaint about this quality is that some of the displays are with 1 or 2 scratches but still be welcome by our critical customers who are requiring good quality.

Original New

It is 100% original from Apple-authorized factories like Toshiba, Sharp, and LG. We get this kind of screen from the first level dealer. The touch panel of the screen is oleophobic coated which prevents from fingerprints when using your iPhone. And starting with iPhone 7g, the backlight from different authorized factories comes with a different code. Backlight from Sharp has the code begins with DKH/CON, from Toshiba begins with C11/F7C/FZQ, from LG begins with DTP/C3F.

What kind of grades we currently provide for LCD Screen?

Version	Model	LCD	Display Panel Type	Other Components	True Tone Programming Support
Aftermarket Basic	iPhone 5-8 series	High copy China LCD	LCD	High Quality Aftermarket	No
Original Pull	iPhone 5-8 series	Original	LCD	Original	YES
Aftermarket Basic	iPhone X-15 Series	High copy China LCD	Incell LCD	High Quality Aftermarket	YES
Aftermarket Basic	iPhone X-15 Series	JK	Incell LCD	High Quality Aftermarket	YES
Aftermarket Basic	iPhone X-15 Series	GX	Oled	High Quality Aftermarket	YES
Original Pull	iPhone X-15 Series	Original	Oled	Original	YES

For iPhone 5-8 Series,we provide two version for end-user,the economic one is high copy aftermarket basic,lcd and other components all OEM version,the premium quality vesion is original pull.

For iPhone model above X,because the different of display panel type,we choose the most popular brand(JK for Incell LCD and GX Oled)in the market,because JK and GX only produce part of iphone model, so we add some other brand and of course original pull version for higher request.

You can see there is 5 grade of screen and many other lcd brands in the market and We only upload part of them, if you need other version and lcd brand, welcome to contact us for the prices.
