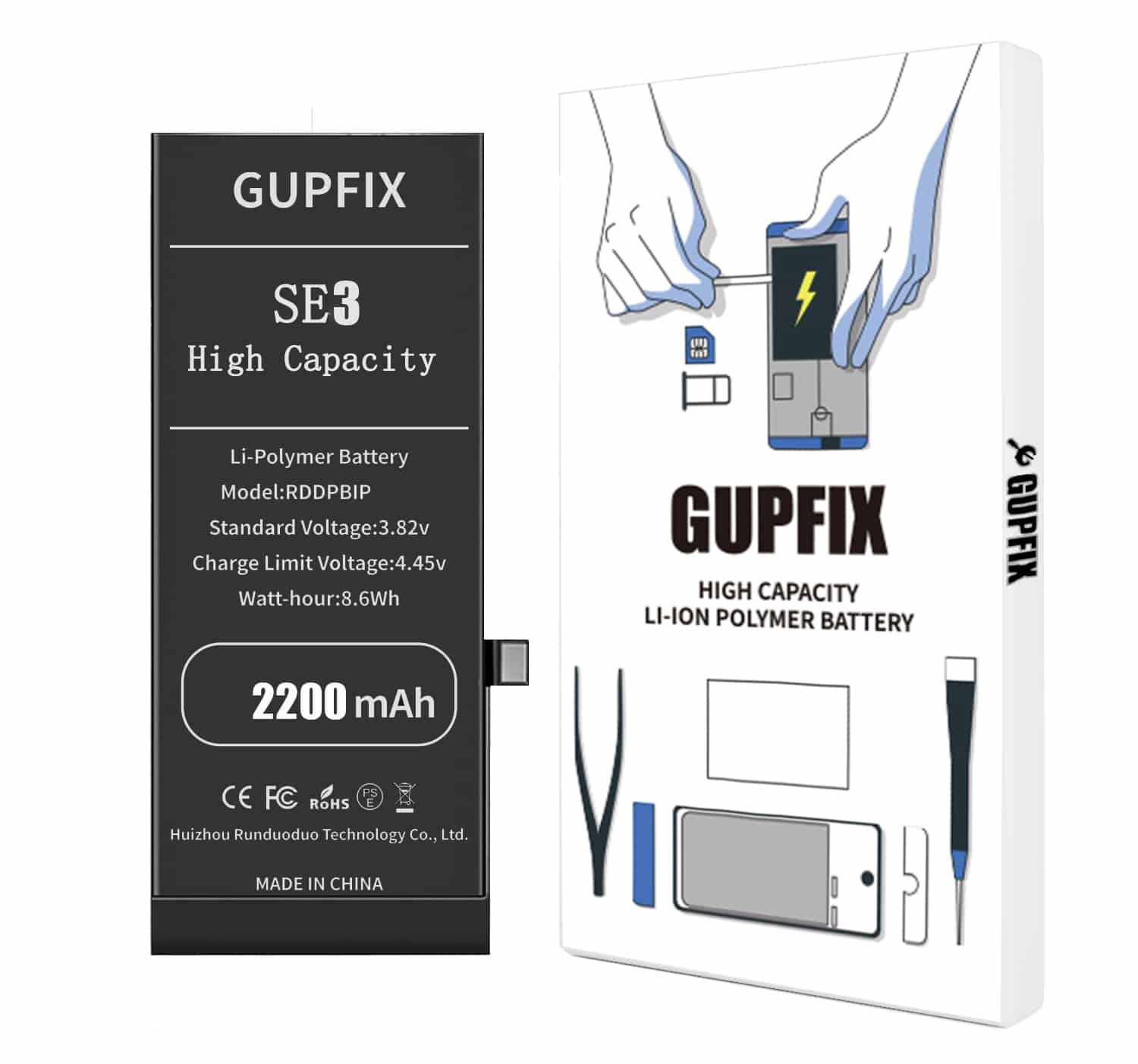

Name: GUPFIX Running Diagnostic Battery Replacment for iPhone SE2022 without tool kits (Diagnostic Series)
SKU: MW-PBIP01SE3D
Availability: InStock

GUPFIX Running Diagnostic Battery Replacment for iPhone SE2022 without tool kits (Diagnostic Series)

1. Brand New 0-Cycle Battery, iPhone SE3/2022 and above 18 systems run diagnostic protection board.
2. Safe battery life without pop-up window, anti-overcharge/anti-overheating, zero risk of battery replacement.
3. Independent diagnosis<Authentic Apple parts>Health 100%.
4. MCU+Original Ti7037 chip+Korea Imported ITM IC
5. High capacity:more than 8-25% capacity of the original battery.Standard capacity:almost same as original
6. Manufactured under strict quality control standards.Pass CE, FCC and RoHS Test
7. Factory direct sale price advantage has great profit

GUPFIX Running Diagnostic Battery replacement for iPhone SE3/SE2022

Quality Descriptions:

Platinum Aftermarket: 100% brand new.

Capcacity: Standard capacity(Diagnostic General Series) / High capacity (Diagnostic Ultra Series,more than 8-25% capacity of the design capacity)

Features:

Before all battery you buy online or offline except going to an apple store are almost aftermarket battery produce by third-part factory, all will have the pop-up unknown part issue after replacing, now this latest battery can fix the issue once you have upgrated your OS to ios18. The service history will show Used battery and battery health & charging will show genuine capacity 100% after complete installing it

If your battery is broken, this replacement part should be ideal for your iPhone SE2022.

This battery replacement is compatible with iPhone SE2022 only.

High capacity :2200 mAh/ Standard capacity:2018 mAh

Installation tips:

1. After installation, the battery health shows 100% with an “Unknown Part” message.

2. To resolve this, go to Settings > General > About > Parts & Service History.

3. Tap Restart & Finish Repair to begin using the Repair Assistant.

4. The status will update to “Used Part”—no flashing or additional steps required.

GUPFIX Running Diagnostic Battery replacement for iPhone SE3/2022 Package:

1,One gupfix diagnostic battery

2,One piece of adhesive strips.

Weight

100 g

Dimensions

18 × 10 × 2 cm

Phone Model

For iPhone SE3(2022)

Product Type

Battery

Tool Kit

Not included

Capacity

High capacity(DU Series) , Standard capacity(DG Series)

Click here to check the grades For other internal small parts

Battery Grades in the Market

Version	Battery Cell	Chipset	Assembled	PERFORMANCE
Gerneral Aftermarket	Other OEM Brands	Singlechip Solution Domestic Chinese Brand IC	Third Parts	Neutral
Premium Aftermarket	Ganfeng/Juxin/ETX/VEKEN	InnoSwitch/Powerflash Solution Korea Imported IC	Third Parts	Like Original
Platinum Aftermarket	Ganfeng/Juxin/ETX/VEKEN	TI solution Korea Imported IC	Third Parts	Like Original
Original	LG/ATL/SONY	TI Gas Gauge IC / Taiwan IC	SUNWODA/DESAY	Original

Battery is mainly composed of the protection board and battery cell,there is a lots of different brands and factories providing these material for the battery.The original solution for iPhone battery is:The protection board adpoted Texas Instruments(TI) and Taiwan Company solution,the battery cell is provided by three companies, ATL battery cell, LG battery cell and 2%-5% Sony battery cell.

We grade the iPhone Battery into 4 different types of quality in the market(The original version could only buy from Apple authorization channel). The above table is the full details of each condition.

Gerneral AfterMarket

Chasing a balance between price and quality for customers‘ need,this version is widely accept for clients come from developing country. It has sustainable supplying chain in China, and the battery cell and protection board are OEM copy quality from small third parts factories. No doubt, the other components of battery are all OEM copy. For most cheap prices battery,it may be durable at the beginning, but the capacity drops quickly after 3-4 months since. The quality of the battery cell is unstable and it is easily damaged by fast charging and high current discharge.

Premium AfterMarket

It is better than Gerneral AfterMarket Basic cause it comes with mainstread battery cell and protection board. Typically, the battery cell provide from several different factories, the most popular 4 on China market are ETX,VEKEN, GANFENG, and JUXIN.The Protection IC adopt InnoSwitch/Powerflash solution with Korea imported IC,which is a stable and reliable solution.

Platinum AfterMarket

In order to build a trustworthy brand, some clients have higher requirements for product quality. So this version created for a higher customer demand.The core components battery cells come from Top brand cell Supplier and use TI solution with Korea Impoted IC which its performance is almost the same as the original.

Original

The materials are 100% original from Apple-authorized factories. Battery cell comes from like LG/ATL/SONY, adpoting (TI) and Taiwan IC and assembled by authorized factories like SUNWODA/DESAY. Obviously, the original one with a higher cost and it could only buy from Apple authorization channel.

What grade we currently provide for battery?

Version

Battery Cell

Chipset

Capacity

Battery Adhesive

Repair Tool

Certificate

Premium Aftermarket

Ganfeng/Juxin

InnoSwitch Solution Korea Imported IC

1,Standard capacity: Almost Same as original

2,High capacity: 10-30% Higher Than original

Included

Optional

UN 38.3, CE, ROHS, FCC Certified,UL 2054 test report

The current version we provide for customers is the second grades(Premium aftermarket),which have the highest price performance.But we can also customised different quality according to YOUR need. We also support OEM for small quantity order.Welcome to contact us if you have any specifice request

LCD Screen Grades

Version	Desciption	LCD	glass	Flex Cable	Frame	Appearance Intactness
Aftermarket Basic	China LCD	JK	Aftermarket	Aftermarket	Aftermarket	New
Aftermarket Basic	Flex Cable Replaced	Original	Aftermarket	Original	Aftermarket	New
Aftermarket Basic	Glass Replaced	Original	Aftermarket	Original	Aftermarket	New
Original Pulls	Pull Form Used Devices	Original	Original	Original	Original	New Alike
Original	Original Pulls	Original Equipment Manufacturer	Original	Original	Original	New

In our store, we grade our iPhone screen into 5 different types of quality on the basis of different material assembled. The following is the full details of each condition.

After Market Basic

It is with widely accept major complaint replacements for original parts, which keeps a right balance between price and quality. It has sustainable supplying chain in China, and all the components of the screen are copy quality. Typically, the LCD/Oled screens are from several different factories, the most popular on China market are JK,AUO, HG,LongTeng, and ShenChao,GX,DD. By comparing the brightness and sharpness of the LCD, we found JK is the best quality for lcd among them and GX for oled.No doubt, the other components on the screen are all copy.

After Market Standard

It is better than After Market Basic cause it comes with original laminated flexes and the LCD panel. Other components like touch panel, frame(hot pressed), backlight, polarize lens, and OCA is all copy from different factories.

After Market Selected

The core components (like LCD and flexes) is 100% original pulled from used iPhone while the frame and touch panel is copy. The touch panel and frame come together with cold pressed glue and assembled together with the LCD by the capable third-party factory which keeps its excellent quality.

Original Pulls

No doubt, it is tear down from used iPhone with all the parts 100% original and working perfectly just like an original new screen, it has whatever the original new screen has. The only complaint about this quality is that some of the displays are with 1 or 2 scratches but still be welcome by our critical customers who are requiring good quality.

Original New

It is 100% original from Apple-authorized factories like Toshiba, Sharp, and LG. We get this kind of screen from the first level dealer. The touch panel of the screen is oleophobic coated which prevents from fingerprints when using your iPhone. And starting with iPhone 7g, the backlight from different authorized factories comes with a different code. Backlight from Sharp has the code begins with DKH/CON, from Toshiba begins with C11/F7C/FZQ, from LG begins with DTP/C3F.

What kind of grades we currently provide for LCD Screen?

Version	Model	LCD	Display Panel Type	Other Components	True Tone Programming Support
Aftermarket Basic	iPhone 5-8 series	High copy China LCD	LCD	High Quality Aftermarket	No
Original Pull	iPhone 5-8 series	Original	LCD	Original	YES
Aftermarket Basic	iPhone X-15 Series	High copy China LCD	Incell LCD	High Quality Aftermarket	YES
Aftermarket Basic	iPhone X-15 Series	JK	Incell LCD	High Quality Aftermarket	YES
Aftermarket Basic	iPhone X-15 Series	GX	Oled	High Quality Aftermarket	YES
Original Pull	iPhone X-15 Series	Original	Oled	Original	YES

For iPhone 5-8 Series,we provide two version for end-user,the economic one is high copy aftermarket basic,lcd and other components all OEM version,the premium quality vesion is original pull.

For iPhone model above X,because the different of display panel type,we choose the most popular brand(JK for Incell LCD and GX Oled)in the market,because JK and GX only produce part of iphone model, so we add some other brand and of course original pull version for higher request.

You can see there is 5 grade of screen and many other lcd brands in the market and We only upload part of them, if you need other version and lcd brand, welcome to contact us for the prices.
